4800MHz To 6500MHz 19dBi 90 Degree Sector Antenna For Mobile Communication

Brand Name : XJS

Model Number : TDS-4865-19

Certification : ROHS CE

Place of Origin : Guangdong, China

MOQ : 2

Payment Terms : Western Union, L/C, T/T

Supply Ability : 6000 pcs per month

Delivery Time : 10~20 work days

Packaging Details : carton packaging, 74.2*31.1*31cm/6pcs

Frequency : 4800-6500MHz

Gain : 19dBi

H Beamwidth : 90°

V Beamwidth : 4°

Polarization : ±45°

F/B Ratio : ≥26db

Dimensions : 700*135*35 mm

Max. Power : 50W

Lightning Protection : Dc Ground

Contact Now

4.8-6.5GHz 19dBi 90 Degree WiFi WLAN MIMO Sector Antenna for communication

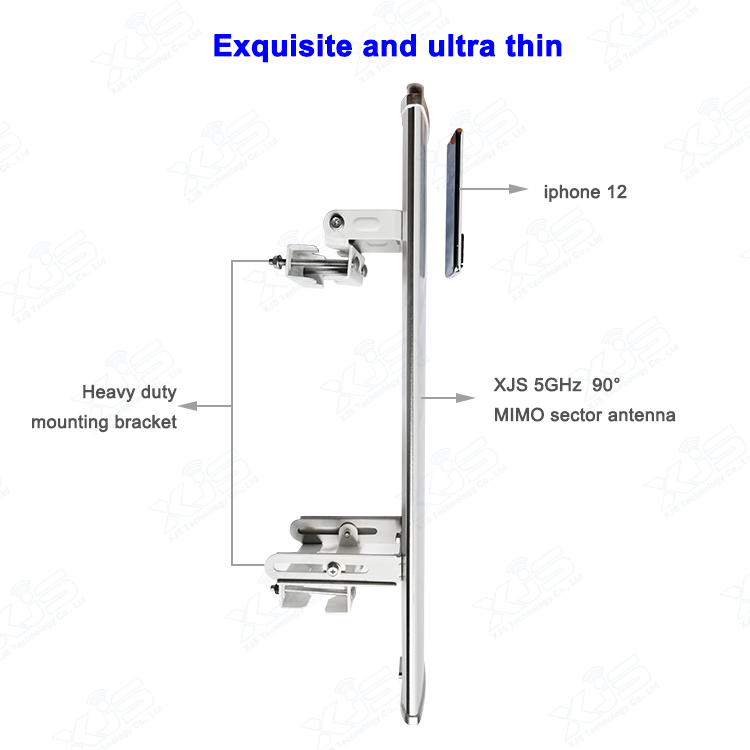

This 90° mimo sector antenna provides high gain with a wide 90° beam-width making them ideal professional quality antennas designed primarily for service providers in the 4.8-6.5GHz band.

The TDD-4865-19 offers high-gain 19dBi, 90-degree wireless beam performance for broad coverage. Combine with other sector antennas to create 360-degree area coverage; apply to a variety of point-to-multipoint scenarios.

Features

Dual Polarity feed system in single enclosure
MIMO - Multiple-Input and Multiple-Output
Two integral N-Female connectors
UV-resistant radome for all-weather operation

Application

4.9/5.1/5.3/5.4/5.8/6.4/6.5 GHz Wireless LAN systems
MIMO PtMP 1x2, 2x2 base station
Supports IEEE 802.11a/n applications
WiMAX, WISP, WiFi, Mobile Communication, Cell-site

Electrical Specifications

Frequency Range	4800-6500 MHz
Gain (dBi)	19 dBi
Horizontal Beamwidth	90°
Vertical Beamwidth	4°
VSWR	<1.8
Polarization	±45°
F/B Ratio	≥26db
Impedance	50Ω

Mechanical Specifications

Connector	Customized
Dimensions	70013535 mm
Weight (Kg)	3.8 kg
Lightning Protection	Dc Ground
Rated Wind Speed	126/ms
Mounting Type	Pole Mount
Suitable pole diameter	Ф30-80mm

Radiation Patterns

4800MHz To 6500MHz 19dBi 90 Degree Sector Antenna For Mobile Communication
